Fred Scott,
Jr.
(434) 295-4188 |
|
|
|
2003/1980
Colemill President II Beech Baron
Model 95-B55, Serial TC-2307
PLEASE DIRECT ALL INQUIRIES TO
HEGG AIRCRAFT
Mark Hegg <mark.hegg@comcast.net>
This is one of the few really nice, quite capable,
almost-all-weather B55 Barons available. At nearly every fuel stop, someone says "What a beauty!"
The Colemill President II conversion in August
2003 was the final addition that made this 1980 deiced
BARON B-55 one of the best equipped and best maintained
Barons in the fleet. With its Norton radome,
powerful look-forward weather radar, and on-board dual datalink
(XM WX and OrbCom)---providing real-time NEXRAD, TFRs, AirMets,
SigMets, METARS, TAFs, Winds Aloft and Icing Levels, and Storm CellTops and direction with likelihood of hail within a cell---there are few to none
as well equipped, or as well cared for as this one.
There is nothing worse than low-time aircraft that has been sitting, doing nothing. This Baron is active and superbly maintained; the only craft I'd even consider replacing it with might be something like a TBM 700/850, a C90 Blackhawk, or a CitationJet. However, only one of these can go where the Baron can, and I like places where trout live.
This Colemill Baron will fly level with its left engine feathered at
14,000 MSL, has a fresh annual inspection and the
new Avidyne EX500 panel that includes the
Avidyne CMAX geo-referenced approach charts. The
powerplants are very well baffled with GAMIjectors
installed and readjusted so that these engines will
run smoothly as low as 10-11 GPH LOP at 20"MP
at 9000 MSL. Alternatively, in smooth air, we could
run the power up and the airspeed well into the yellow
arc. The cylinder heads run never over 320F max, and
are often are in the high 200F range. Oil temps
are really cool. Lovely! These IO-550s just purr.
There are no squawks on this plane.
Colemill President II 2003/1980
Deiced BARON B-55
N6734G - SERIAL TC 2307
Location: Central Virginia
Continental IO-550-E3B 300 HP Engines on TCM
Top Care
with Hartzell 3-Blade Anti-Ice Props
August 2003 President II conversion
Hobbs Time @ Mar 2008 3681 hrs
Right Engine TCM IO-550-E3B w/GAMIjectors -- 944
hrs since new
Left Engine TCM IO-550-E3B w/GAMIjectors -- 944
hrs since new
Right Prop Hartzell EHC-G3YF-2UF/FC7663DB-4T -- 944
hrs since new
Left Prop Hartzell EHC-G3YF-2UF/FC7663DB-4T -- 944
hrs since new
Total Time Aircraft 6126 hrs TTA (Mar 2008)
Oil Analysis is accomplished at every oil change -
No anomalies - All records available
|
OPTIONS:
Full Deice:
Boots, are shiny and almost like new ($20,000
option)
Alcohol Props & Alcohol windshield, and new alcohol pump in May 2000
Norton Radome - 90% radar transparent ($11,000
option) with abrasion boot
JPI EDM 760 Twin engine monitor & fuel
flow, integrated to Nav Systems ($7,500 option)
Prop unfeathering accumulators
Concorde RG-25XC batteries, high capacity, sealed
recombinant gas
Dual F& M Oil filters
Vortex Generators - MicroAerodynamics
Dual Reiff engine cylinder band heaters and engine oil
pan heaters
Heavy duty brakes
Dual Flight controls
Rosen three axis sunvisors
Six seats with shoulder harness
Pilot/Copilot relief tube
136 gallons usable fuel -- 5.5 hour to 6.0 hour endurance
Wingtip mounted landing lights - long-life halogen
bulbs ... and
PulseLite flashing recognition lights - long-life halogen
bulbs
Aux. landing lights by Alpine Aviation, main
gear-mounted. (Really Bright!)
Nose wheel taxi light
Wingtip and tailcone strobes
Center console and front seat map compartments
Large aft baggage compartment
Large baggage door
Polished aluminum prop spinners
Polished stainless steel exterior fasteners
|
|
AVIONICS:
King KFC-200 Flight Director &
Autopilot, w/electric trim
King KCS-55A Compass System and KI-525 Slaved HSI,
w/ large secondary slip indicator
Dual altimeters
Icarus NavAlert II altitude alerter and GPS
data repeater mounted directly below Attitude Gyro
King KI-229 Dual pointer slaved RMI (ADF and
#1 VOR, or #2 VOR, or GPS) |
King KLN-94 GPS Moving Map (IFR
ENR, TERM, APPR) GPS, reads JPI fuel flows,
remote displays on #1 HSI, and/or #2 VOR indicator,
and/or RMI. Prominent annunciators are located under
the glareshield for the JPI and GPS alarms.
Avidyne EX500 FlightMax MFD
display, includes on-board
color radar, plus
downlink NEXRAD radar, graphic and decoded METAR weather,
with expansion capability for traffic, terrain, &
lightning
RDR-160 Digital Color Radar with 12 antenna.

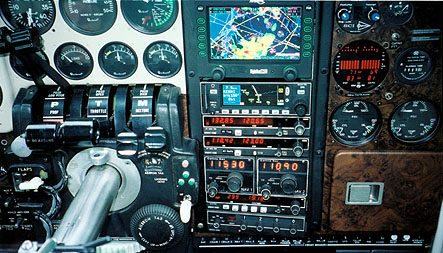

The
datalink weather service from Avidyne, delivered by XM WX satellite
downlink and backed up by the OrbComm galaxy is just wonderful. This picture,
showing the down-linked NEXRAD weather, was shot on
a private strip, with engines off and is typical of
the information available in the cockpit! before
we depart!
Alternatively, the excellent and very powerful on-board
weather radar is displayed on the same EX500 screen
and at the same time as the EX500 map, if the pilot
so chooses. The combination of the Norton radome, the
12" antenna, and the crisp digital Avidyne display
gives great performance on very large cells at 100-120
mile range. Notice the older Collins Nav/Com/DME? If we are at 10,000 MSL or so and dial in a VORTAC at 100+NM, the DME locks on in seconds, every time. It's all about having these units aligned properly.
King LED Digital KR-87 ADF, displayed
on the RMI
Dual King LED Digital KY-196A COMs, with 9 pre-set channels
Dual Collins LED Digital 351 NAVs (Digital readout of
To & From VOR)
Dual Collins Glideslope receivers
Collins 451 Digital DME (Dual input display, channeled
by either NAV)
Collins 350 Audio Panel with 3-light Marker
King KT76A Transponder with Altitude Encoder
Monroy ATD-300 Digital Traffic Detector mounted
in glareshield, w/external antenna
Artex 110-4 ELT remote-mounted with panel-mounted test
switch
Sigtronics SCI-4 intercom (Isolate pilot, Crew only,
or All positions and music input)
Dual yoke w/ Beech electric chronometer
|
Paint,
Interior & Glass

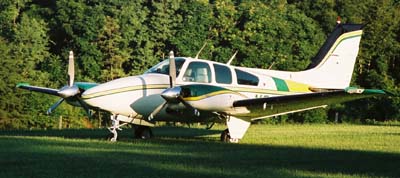

Fresh paint in August 2004 (earlier scheme seen here )
Paint is Jet-Glo Tender Yellow base w/Shamrock Green
and Sun Yellow stripes in the Beech design, with Jaguar
style engine cowlings and immaculate detailing.
Paint is superb...rated 9/10
Oregon Aero visco-elastic front seats were reworked
in 2003, and are exceedingly comfortable. Interior is
custom leather in Cream color, rated 8/10
Headrests on all seats are like new. The rear (5/6)
seats are new matching leather-like vinyl, rated 9/10
and in storage. We operate this Baron as a four-seat
aircraft.
Glass is excellent, no crazing, smokiness or cracks
G&D Aero tinted thermal window inserts (not
shown here) make the cabin really comfortable ($2500
option)
Deice boots are slick & shiny, have had loving
care since replacement in 1990
All window & door seals, wingroot seals are new
in 2000; Door was rehinged in 2003.
Aircraft is exceptionally quiet in flight
Aircraft is factory zinc-chromated, no corrosion
Airframe History plus Current Engines & Props
Record -- Recent Maintenance:
1983 Deice boots (Airborne 707B ) installed by BFGoodrich,
Akron OH
1986 new Hobbs meter @ 2445.1 hrs TTA; Begin Aircraft
Logbook #2
1989 Exported @ 3221 hrs TTA. French registration F-GHAR;
Begin Aircraft Logbook #3
1990 Deice boots replaced- still look nearly new
1999 Re-imported from France, US registered as N6734G
@ 4452 hrs TTA
2000 Annual completed May @ 4545 hrs TTA by Air Care,
Rocky Mount NC.
All ADs and Bulletins complied with. Extensive
and entirely elective fix-up, nit-picking work also
accomplished at same time. All window, door, and wing
root seals replaced.
2001 Annual completed May @4629 hrs TTA by Air Care,
Inc.
2002 Annual completed Jan @4712 hrs TTA by Virginia
Aviation, Lynchburg, VA
Tinted thermal windows added
2002 JPI EDM 760 Twin engine monitors and GAMIjectors
added
Fall 2002, the pilot attended the Advanced
Pilots' Seminars, Ada, Oklahoma
2003 Annual completed Jan @4995.4 hrs TTA by Virginia
Aviation; new wheel bearings, races, brake pads and
rotors; Pitot/Static & Transponder IFR Certification
- good for two years
2003 March ... Installed (See
it here) Avidyne EX500 datalink MFD
2003 Colemill President II conversion in August
@ 5182.2 TTA by Colemill Enterprises. Engines run really
smooth! Dual F&M Oil filters added. Pulsing wingtip
recognition lights added.
2004 Annual completed Feb @ 5277.7 hrs TTA by Virginia
Aviation
All nose landing gear rod ends replaced due to time
in service; added a second glideslope receiver and indicator;
replaced all nose landing gear rod ends due to time
in service.
Deice boots and system re-checked by BFGoodrich, Akron,
OH
2004 full strip and New Paint by Legends Aircraft
Refurbishing, Aiken SC in Jet-Glo Colors:
Tender Yellow 574-591
Shamrock Green stripe 573-585
Sun Yellow stripe 5041
Panel is Sherwin Williams (Pratt & Lambert) Castle
Tan 370-506
2005 XM MultiLink datalink added to Avidyne with CMax
electronic charts
2005, 2006, 2007 Routine Annuals, few anomalies, completed by Virginia
Aviation.
2007 New tail deice boots and system re-checked by BFGoodrich, Akron,
OH
2008 Routine Annual Inspection completed by Virginia
Aviation in March 2008
Damage: Nose Gear collapse in 1988. No
problems since then. Repairs would not be known unless
they had been logged. The nose looks entirely factory-like,
inside & out
I bought the plane from a responsible
dealer who told me all about the damage that is discussed
above. He has subsequently become a close friend. As
I have used machinery all my life, I am aware that damage
can be repaired, and if done well, does not affect the
servicability of the machine in the slightest. This
is particularly true of repairs that have significant
service time thereafter with no followup problems, as

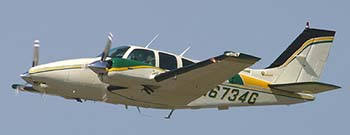

is the case with this Baron, photographed here by Mike
Durning departing Halifax, Nova Scotia in Sept. 2004.
If you are curious why these engines look so clean underneath
after a thirty hour trip, read
here why they run so well. |
